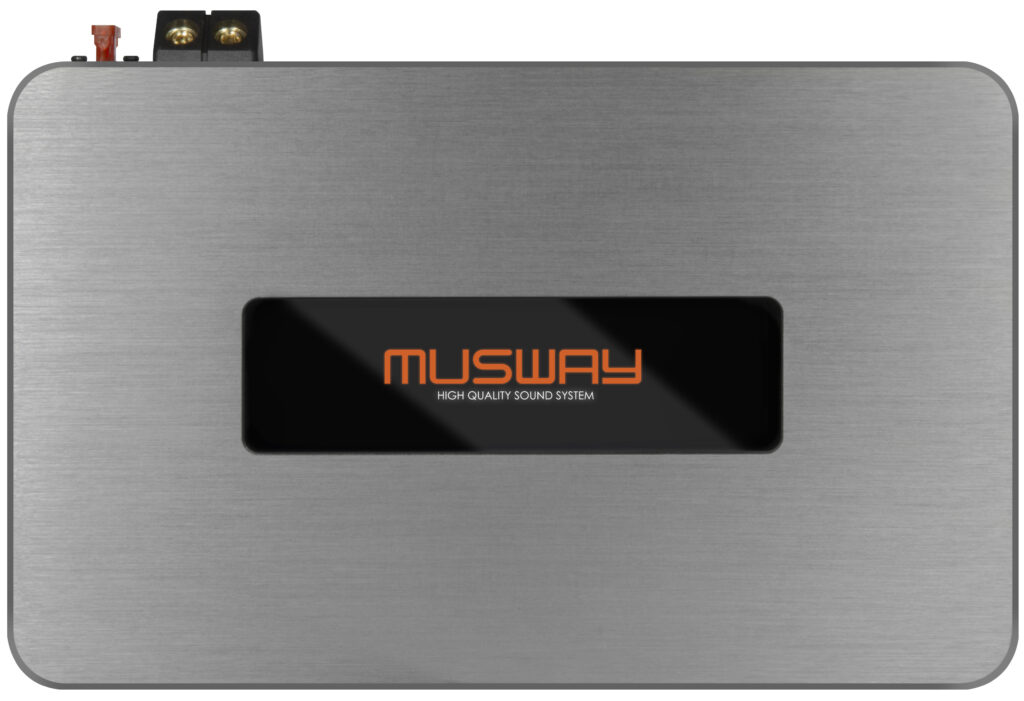

MUSWAY D8v3 8 Channel Class D Amplifiers With 10 Channel DSP
779,00 €
Features:
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 330 MHz DSP technology, controllable via new V3 PC software or V3 App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
Specifications:
8 x 50/75 Watts RMS @ 4/2 Ohms or
4 x 150 Watts RMS @ 4 Ohms bridged
8 x High Level Input 10 – 18 V/RMS
1 x AUX Input/Stereo (RCA) 4 V/RMS
1 x Optical Input/Stereo (PCM, 96 kHz / 24 bit)
8 x Loudspeaker Output amplified
2 x Pre-Amplifier Output (RCA) 4 V/RMS (configurable via DSP)
Dimensions: 150 x 44 x 220 mm
- Description
- Reviews (0)
- PDF MANUAL
- SOFTWARE DOWNLOAD
Description
With the D8v3 model MUSWAY delivers an extremely compact sound power plant in a shapely housing with astonishing 8 channels, including a freely configurable 10-Channel DSP. Each channel is bridgeable and generates a 2 ohms power of 75 Watts RMS, thus a total of 600 watts RMS. In principle, the D8 Amp offers the same features as the M6, but with two amplified outputs and two additional DSP channels. The compact sound miracle is particularly suitable for loudspeaker systems in 3-Way active operation. With the DSP, the crossover frequencies, time alignment and frequency corrections can be perfectly adjusted.
As a bonus on top in this configuration a bridged output with 150 watts RMS to 4 Ohms for a mid-size subwoofer would be available. The centerpiece is the state-of-the-art DSP chip ADAU1452 from Analog Devices, which was fine-tuned by the MUSWAY engineers and leaves no audiophile wishes unfulfilled. Also on board is a flexible multi-level input with Error Protection System, a soft-clipping speaker protection for 2 Ohm operation and an automatic turn-on function, so that the connection to OEM radios does not cause any problems.
