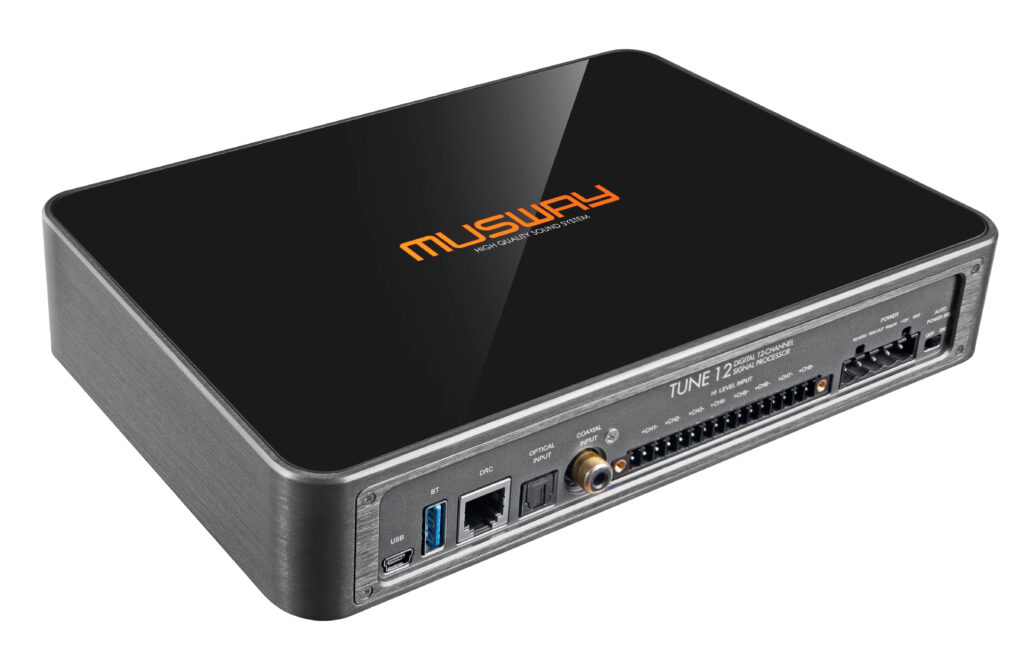

MUSWAY TUNE12 12 Channel DSP With Pc/App Control
799,00 €
Features:
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Three Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 295 MHz DSP technology, controllable via new V3 PC software or V3 App
• Separately adjustable input sensitivity (CH1-8 high level, CH1-6 low level, AUX)
• High quality full aluminum housing with glass plate
• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
Specifications:
8 x High Level Input 8 – 24 V/RMS
6 x Low Level Input (RCA) 1 – 8 V/RMS
1 x AUX Input/Stereo (RCA) 1 – 8 V/RMS
1 x Optical Input/Stereo (PCM, 96 kHz / 24 bit)
1 x Coaxial lnput/Stereo (S/PDIF, 96 kHz / 24 bit)
12 x RCA Output 6,5 V/RMS
Dimensions: 220 x 38 135 mm
- Description
- Reviews (0)
- PDF MANUAL
- SOFTWARE DOWNLOAD
Description
With the new 12-channel stand-alone DSP TUNE12, MUSWAY proves once again how good high-end audio can look like. The TUNE12 inspires with excellent features and inner values that are elementary in very complex devices. So three Burr-Brown converters PCM3168A were installed to optimize the channel separation and enables the multiple use of different sources. The centerpiece is the state-of-the-art DSP chip ADAU1452 from Analog Devices, which was fine-tuned by the MUSWAY engineers and leaves no audiophile wishes unfulfilled. In addition to the extremely high end sound the TUNE12 also convince by very low distortions and its lavish features: It not only has 12 fully processable outputs, but also AUX, S/PDIF and optical digital inputs as well as 6 low outputs and 8 high level inputs. The latter are equipped with the latest EPS and process up to 24 V/RMS.
