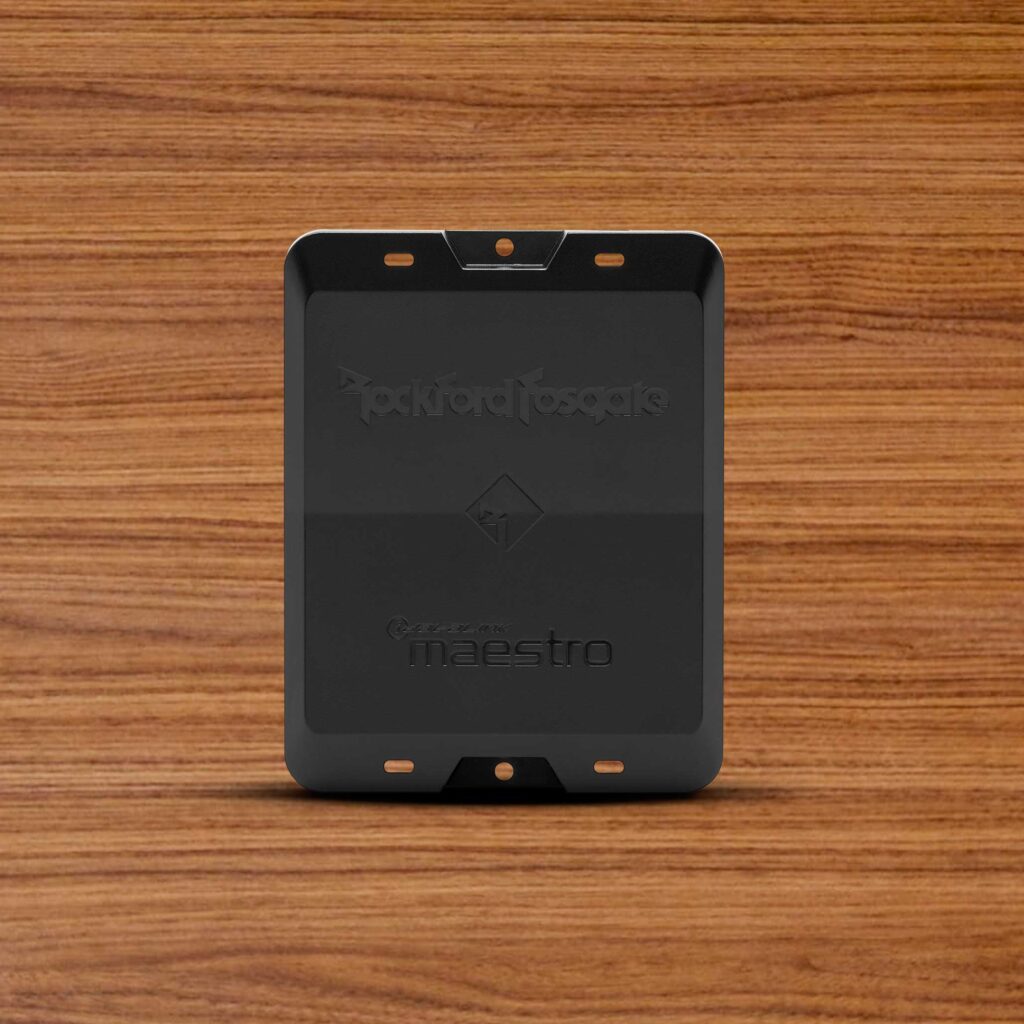

DSR1 Rockfort Fosgate 8-Channel Interactive Signal Processor w/ Integrated iDatalink Maestro Module
329,00 €
Technical Specifications:
| Processor Type | Digital Processor |
| Input Impedance | 20k Ohms |
| Signal Input | 4 Balanced Differential RCA Inputs 4 High-Level Inputs w/ Signal Sense 2 AUX RCA Inputs SPDIF Coaxial Input |
| Gain | – |
| Output Impedance | 200 Ohms |
| Frequency Response | 20Hz – 20kHz +/- 0.5dB |
| Operating Voltage | 9 – 16 VDC |
| Mounting | Behind Dash |
| Signal Output | 8 RCA Outputs |
| Input Voltage | Low Level (RCA): up to 4V High Level: up to 12.5V High Level Turn-On: 4V – 16V AUX: up to 2V |
| Output Voltage | up to 4V RMS |
| THD+N | <1.0% |
| Signal-to-Noise | RCA: >100 dBA (A-weighted) AUX: >100 dBA (A-weighted) |
| Digital Signal Processing (DSP) | Speed: 147 MIPS Precision: 32-BIt Accumulators: 72-bit |
| Digital to Analog (DAC) | Precision: 24-Bit Dynamic Range: 108 dB THD+N: -98 dB |
| Crossover Type | High-Pass Low-Pass Band-Pass All-Pass Fixed Linkwitz-Riley |
| Crossover Frequency | Variable: 20 Hz to 10 kHz |
| Analog to Digital (ADC) | Precision: 24-Bit Dynamic Range: 105 dB THD+N: -98 dB |
| Crossover Slope | Selectable Slope: 6/12/18/24/30/36/48 dB/Octave |
| EQ Frequency Centers | Channels: Front/Spare/Rear/Sub Frequency Bands: 31 per channel |
| Smartphone Compatibility | APPLE: iOS 10.0 or later (iPhone, iPad, iPod touch) ANDROID: Oreo 8.0 or later (optimized for 5-inch screen or larger) |
| EQ Frequency Controls | Selectable Q: 0.01 to 10.0 |
| Shipping Weight | 0.5 Lbs. (0.22 Kg) |
| Dimensions (H x W x D) | 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm) |
- Description
- Reviews (0)
- PDF MANUAL & SOFTWARE
- PerfectTune™ Application
Description
Co-developed with iDatalink Maestro, the DSR1 combines a full-featured 3Sixty digital signal processor with a flashable Maestro integration module. The DSR1 can be used out-of-the-box with high or low level input, or with a quick flash download to add vehicle specific firmware to enable integration without the loss of factory equipped controls and features. Once connected, complete control of the sound profile can be adjusted using the proprietary Rockford Fosgate PerfectTune™ software.
The DSR1 is the first real solution for replacing the factory amplifier and speakers in Ford and Chrysler vehicles, as the DSR1 uses the full-range, flat audio signal from the factory source unit.
After the built-in Maestro interface is flashed with the vehicle-specific firmware, the factory source unit CANbus messages are used to control the internal signal routing of the DSR1. The DSR1 still utilizes the power processor found in our patented 3Sixty.3, but adds an easy to use app for tuning from Apple and Android devices.
