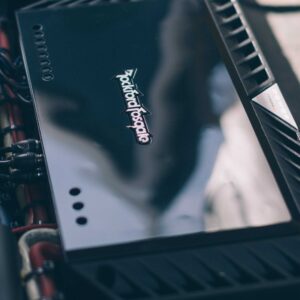

Rockfort Fosgate Power 1,000 Watt Class-ad Full-Range 4-Channel Amplifier T1000-4ad
999,00 €
Technical Specifications:
Number of Channels | 4 |
Total Power(Sum of Rated Power) | 1000 Watts RMS |
Rated Power(RMS Continuous Power) | 250 Watts x 4 @ 4-Ohm 250 Watts x 4 @ 2-Ohm 250 Watts x 4 @ 1-Ohm 500 Watts x 2 @ 4-Ohm Bridged 500 Watts x 2 @ 2-Ohm Bridged |
Dynamic Power(PVC/PowerCube®) | 270 Watts x 4 @ 4-Ohm 0° Res 327 Watts x 4 @ 2-Ohm 0° Res 365 Watts x 4 @ 1-Ohm 0° Res 619 Watts x 2 @ 4-Ohm Bridged 654 Watts x 2 @ 2-Ohm Bridged |
Bridgeable | Yes |
Frequency Response | 20Hz to 20kHz +/-1dB |
Input Sensitivity | 150 mV to 5 V |
Circuit Topology Class | Class AD |
Efficiency (average) | 84.1% @ 4-Ohm 81.6% @ 2-Ohm 81% @ 1-Ohm |
Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
Signal Input | Front Channels: 1 RCA pair Rear Channels: 1 RCA pair Input Switch: 2CH / 4CH |
Signal Output | 1 RCA pair |
Tone Controls | Front Channels: Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz Rear Channels: Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz Function depends upon crossover setting (LP/AP/HP) |
Crossover Controls | Front Channels: High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth Rear Channels: High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth |
Remote Controls | Optional Remote PEQ |
Visual Indicators | Power (Blue LED) Thermal (Red LED) Protect (Yellow LED) |
Power Wire Gauge | 4 AWG |
Power Input Connector | Block |
Speaker Wire Gauge | 8 AWG to 16 AWG |
Speaker Output Connector | Block |
Cooling | Convection |
Operating Voltage | 9 – 16 VDC |
Recommended Fuse(not included) | 150 A |
Average Current Draw (13.8V Music) | 60 A |
Max. Current Draw (13.8V Sinewave) | 120 A |
Suggested Alternator | 75 A |
Dimensions (H x W x D) | 2.14 x 8.14 x 14.91 (in) 5.42 x 20.68 x 37.86 (cm) |
Shipping Weight | 14.45 Lbs. (6.55 Kg.) |
- Description
- Reviews (0)
- PDF MANUAL
Description
The Power T1000-4ad is a 4-channel amplifier that combines the sound quality characteristics of a Class-A design with the efficiency of a Class-D in one remarkable package, offering high fidelity in a full-range configuration.
The T1000-4ad combines sound quality characteristics of Class-A designs with efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.
