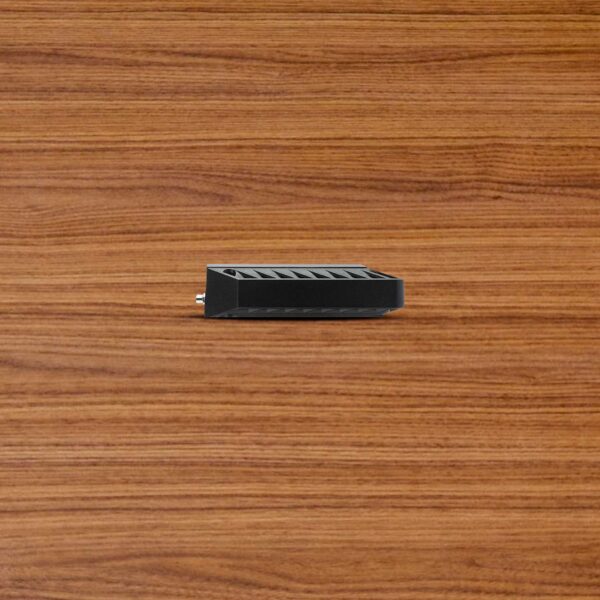

Rockfort Fosgate Power 2500 Watt Class-bd Constant Power Amplifier T2500-1bdCP
1.499,00 €
Technical Specifications:
Number of Channels | 1 |
Total Power(Sum of Rated Power) | 2500 Watts RMS |
Rated Power(RMS Continuous Power) | 1500 Watts x 1 @ 4-Ohm 2500 Watts x 1 @ 2-Ohm 2500 Watts x 1 @ 1-Ohm Two amplifiers in bdSYNC: 5000 Watts x 1 @ 2-Ohm |
Dynamic Power(PVC/PowerCube®) | 1823 Watts x 1 @ 4-Ohm 2940 Watts x 1 @ 2-Ohm 2980 Watts x 1 @ 1-Ohm |
Bridgeable | Yes (two amps can be “strapped” together using bd-Sync2 cable to create one monster amplifier) |
Frequency Response | 20Hz to 250Hz +/-0.5dB |
Input Sensitivity | 150 mV to 4 V |
Circuit Topology Class | Class BD |
Efficiency (average) | 81.9% @ 4-Ohm 77.7% @ 2-Ohm 64.5% @ 1-Ohm |
Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |
Signal Input | 1 RCA pair |
Signal Output | 1 RCA pair |
Tone Controls | Bass: 0dB to +18dB @ 45Hz |
Crossover Controls | Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz |
Remote Controls | Optional Remote PEQ (overrides built-in Punch Bass) |
Visual Indicators | Power (Blue LED) Thermal (Red LED) Protect (Yellow LED) Output -00dB to +2dB @ 11 steps (Blue LEDs) Battery 9VDC to 16VDC @ 11 steps (Blue LEDs) |
Power Wire Gauge | 1/0 AWG |
Power Input Connector | Block |
Speaker Wire Gauge | 8 AWG to 16 AWG |
Speaker Output Connector | Block |
Cooling | Convection |
Operating Voltage | 9 – 16 VDC |
Recommended Fuse(not included) | 300 A |
Average Current Draw (13.8V Music) | 175 A |
Max. Current Draw (13.8V Sinewave) | 350 A |
Suggested Alternator | 200 A |
Dimensions (H x W x D) | 2.14 x 8.14 x 21.875 (in) 5.44 x 20.68 x 55.66 (cm) |
Shipping Weight | 21.7 Lbs. (9.84 Kg.) |
- Description
- Reviews (0)
- PDF MANUAL
Description
The Power T2500-1bdCP is a 2,500 Watt mono amplifier featuring Constant Power. The T2500-1bdCP is so flexible and powerful you can use a pair in bdSYNC mode to create one massive amplifier that can deliver a whopping 5 Kilowatts.
The T2500-1bdCP is based on the legendary T2500-1bd amplifier design with a proprietary “Constant Power” configuration that delivers up to 25% more power (Watts) across all impedance loads. The result is a listening experience cleaner, louder and more impressive than ever before. This T2500-1bdCP amplifier pumps out 2,500 watts, easily driving any array of woofers wired to a 1-ohm load. Use two amps in Power-Sync mode for a whopping 5,000 watt power horse!
