T2S2-16 Rockfort Fosgate Power 40 cm (16”) T2 Single 2-Ohm Subwoofer
1.899,00 €
Technical Specifications:
Nominal Impedance | 2-Ohm |
Le (mH) | 0.91 |
Vas (Liters) | 90.1 |
Qms | 3.76 |
Qes | 0.56 |
Fs (Hz) | 28.5 |
Voice Coil Diameter | 3.96″ (100 mm) |
Power Handling (Watts RMS) | 2500 Watts RMS 5000 Watts Max |
Speaker Connector | 8 AWG slot loaded |
Size | 40 cm (16”) |
Qts | 0.49 |
Magnet Weight (oz) | 529 oz. (15 Kg) |
Xmax (mm) | 34 |
Sd (cm2) | 1034 |
Re (Ohms) | 1.6 |
SPL (dB @ 1w/1m) | 90 |
SPL (dB @ 2.8v/1m) | 93 |
Subwoofer Type | Standard |
Voice Coil Type | Single Voice Coil |
Mounting Depth | 10.47 in. (266 mm) |
Woofer Displacement | 0.289 cu. ft. (8.2 Liters) |
Cutout Diameter | 15.04 in. (382 mm) |
Sealed Box Volume (Vb) | 2.4 cu. ft. (67.9 Liters) |
Vented Box Volume (Vb) | 5.5 cu. ft. (155 Liters) |
Shipping Weight | 100.80 Lbs. (45.7 Kg.) |
- Description
- Reviews (0)
- PDF MANUAL
Description

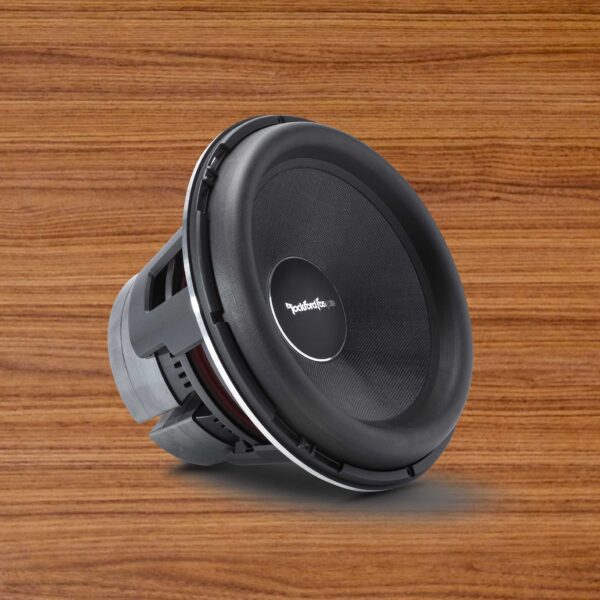

The Power T2S2-16 subwoofer features 16-inches of effective radiating cone area and a single 2-ohm voice coil for ease of wiring.
This subwoofer is not just another made with off-the-shelf parts, we wanted something better, and we knew our fanatics demand this as well. Since the original Power T2 subwoofer was designed by one of the leading loudspeaker engineers in the world, there were some lofty goals that had to be reached. Work was done from the ground-up to out-perform it’s previous family members, while incorporating valuable feedback from our great network of Rockford Fosgate dealers. They wanted it bigger and badder with dual everything, and we feel that goal was crushed.
Why 16-inches? Well, this is a combination of the cone and surround assembly described as the “total effective radiating area”. Since this model is so massive, we incorporated dual spiders for exceptional travel of the cone assembly. The motor structure operates very linear for exceptional sonic quality and the IDHS heat-sink gives the subwoofer impressive power handling capacity. Top it off with proprietary input terminals for large gauge cables to efficiently deliver the needed voltage, and this subwoofer is ready to drop the doom!
