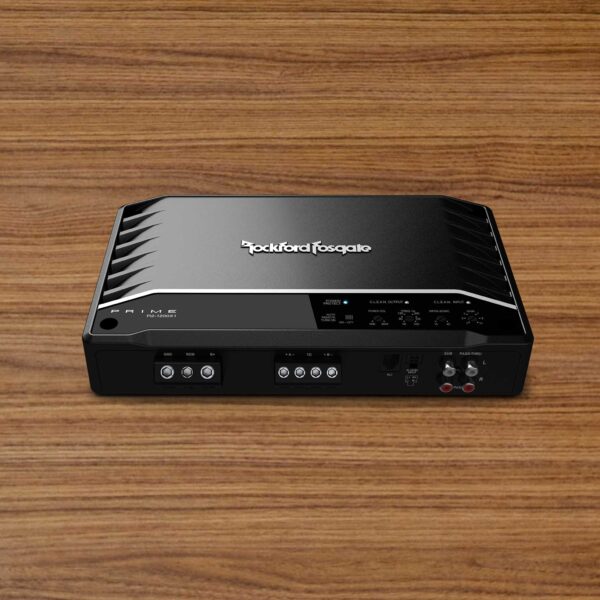

Rockfort Fosgate Prime 1200 Watt Mono Amplifier R2-1200X1
449,00 €
Technical Specifications:
| Number of Channels | 1 |
| Total Power(Sum of Rated Power) | 1200 Watts |
| Rated Power(RMS Continuous Power) | 400 Watts x 1 @ 4Ω 800 Watts x 1 @ 2Ω 1200 Watts x 1 @ 1Ω |
| Dynamic Power(PVC/PowerCube®) | 489 Watts x 1 @ 4Ω 889 Watts x 1 @ 2Ω 1389 Watts x 1 @ 1Ω |
| Bridgeable | No |
| Frequency Response | 20 Hz – 250 Hz |
| Input Sensitivity | Low-Level: 150 mV – 4 V High-Level: 450 mV – 12 V |
| Circuit Topology Class | Class-D |
| Efficiency (average) | > 80% |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0% 2Ω: <1.0% 1Ω: <1.0% |
| Signal Input | Low-Level: 2 RCA High-Level: 4-Pin Molex |
| Signal Output | Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input) |
| Tone Controls | 0 to +18 dB @ 45 Hz |
| Crossover Controls | Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth Infrasonic: 15 Hz – 40 Hz @ 12dB/Octave Butterworth |
| Remote Controls | Yes |
| Visual Indicators | POWER (Blue) / PROTECT (Red) C.L.E.A.N. IN (Red) C.L.E.A.N. OUT (Blue/Red) |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Compression Terminal Block |
| Speaker Wire Gauge | 8 AWG |
| Speaker Output Connector | Compression Terminal Block |
| Cooling | Convection |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse(not included) | 200 A |
| Max. Current Draw (13.8V Sinewave) | 121 A |
| Dimensions (H x W x D) | 1.9″ x 6.8″ x 11.3″ (4.9 cm x 17.3 cm x 28.5 cm) |
- Description
- Reviews (0)
- PDF MANUAL
Description
Primed for Performance, the R2-1200X1 is a 1200 watt, class-D amplifier, capable of operating at 4Ω, 2Ω or 1Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
