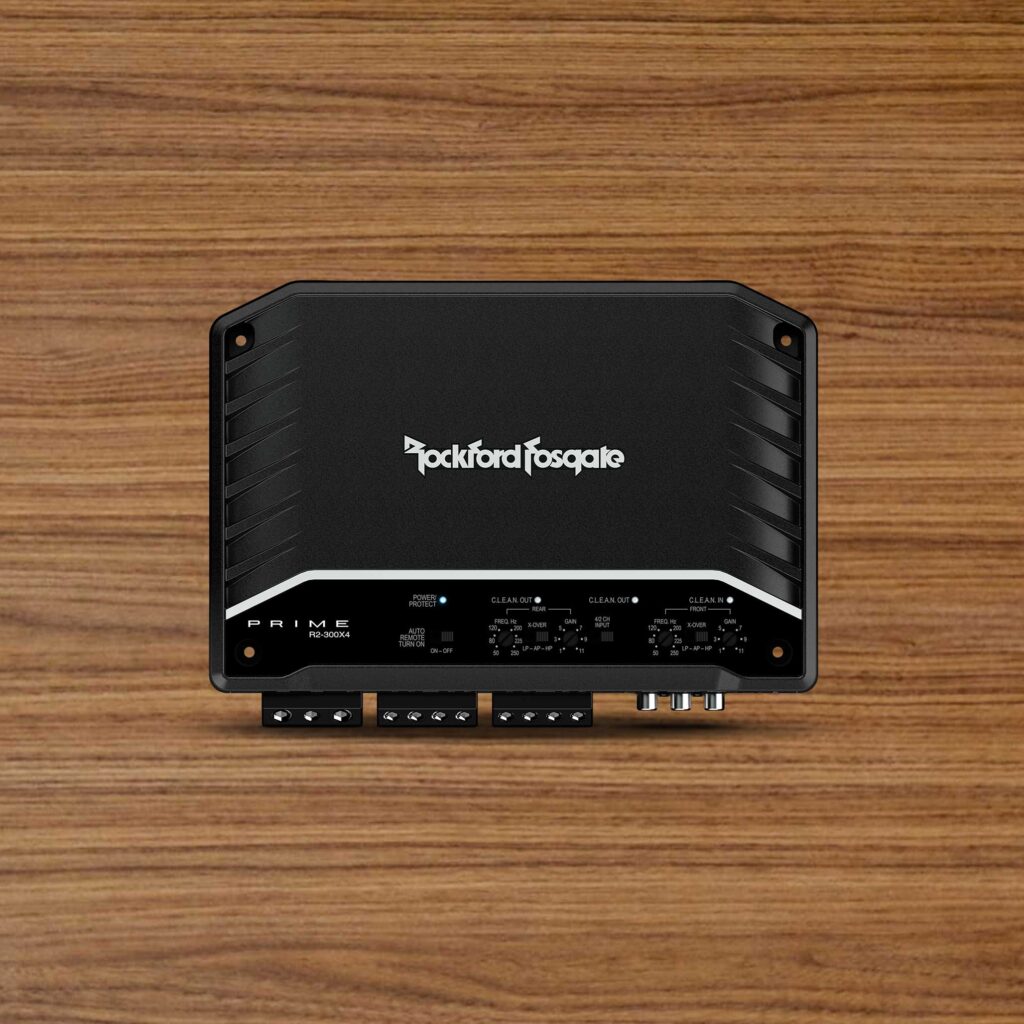

R2-300X4 Rockfort Fosgate Prime 300 Watt 4-Channel Amplifier
299,00 €
Technical Specifications:
| Number of Channels | 4 |
| Total Power(Sum of Rated Power) | 300 Watts |
| Rated Power(RMS Continuous Power) | 50 Watts x 4 @ 4Ω 75 Watts x 4 @ 2Ω 150 Watts x 2 @ 4Ω Bridged/Mono |
| Dynamic Power(PVC/PowerCube®) | 70 Watts x 4 @ 4Ω 115 Watts x 4 @ 2Ω 230 Watts x 2 @ 4Ω Bridged/Mono |
| Bridgeable | Yes |
| Frequency Response | 20 Hz – 20 kHz |
| Input Sensitivity | Low-Level: 150 mV – 4 V High-Level: 450 mV – 12 V |
| Circuit Topology Class | Class-D |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0% 2Ω: <1.0% |
| Signal Input | Front Low-Level: 4 RCA Front High-Level: 4-Pin Molex Rear Low-Level: 4 RCA Rear High-Level: 4-Pin MolexInput Switch: 2/4 Input (works for RCA/hi-level inputs) |
| Signal Output | Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input) |
| Tone Controls | No |
| Crossover Controls | Front High-Pass: 50 Hz – 250 Hz @ 12dB/Octave ButterworthFront Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth Rear High-Pass: Rear Low-Pass: All-Pass: Yes |
| Remote Controls | No |
| Visual Indicators | POWER (Blue) / PROTECT (Red) C.L.E.A.N. IN (Red) C.L.E.A.N. OUT Front (Blue/Red) C.L.E.A.N. OUT Rear (Blue/Red) |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Compression Terminal Block |
| Speaker Wire Gauge | 8 AWG |
| Speaker Output Connector | Compression Terminal Block |
| Cooling | Convection |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse(not included) | 60 A |
| Max. Current Draw (13.8V Sinewave) | 39 A |
| Dimensions (H x W x D) | 1.9″ x 6.8″ x 10.1″ (4.9 cm x 17.3 cm x 25.5 cm) |
- Description
- Reviews (0)
- PDF MANUAL
Description
Primed for Performance, the R2-300X4 is a 300 watt, full-range Class-D amplifier capable of operating at 4Ω or 2Ω stereo and 4Ω bridged/mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases.
The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
