Rockfort Fosgate Punch 1,000 Watt Class-bd 5-Channel Amplifier P1000X5

Rockfort Fosgate Power 13 cm (5.25”) 2-Way Full-Range Speaker T152
Rockfort Fosgate Power 1,000 Watt Class-ad Full-Range 4-Channel Amplifier T1000-4ad
0 out of 5
( There are no reviews yet. )

799,00 €

Technical Specifications:

Number of Channels 5
Total Power(Sum of Rated Power) 1000 Watts
Rated Power(RMS Continuous Power) 75 Watts x 4 + 150 Watts x 1 @ 4Ω
125 Watts x 4 + 300 Watts x 1 @ 2Ω
N/A Watts x 4 + 500 Watts x 1 @ 1Ω
250 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged
Dynamic Power(PVC/PowerCube®) 115 Watts x 4 + 299 Watts x 1 @ 4Ω 0° Res
190 Watts x 4 + 540 Watts x 1 @ 2Ω 0° Res
N/A Watts x 4 + 863 Watts x 1 @ 1Ω 0° Res
380 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged 0° Res
Bridgeable Yes (front/rear channels)
Frequency Response Front/Rear: 20Hz – 20kHz +/-3dB
Sub: 20Hz – 500Hz +/-3dB
Input Sensitivity 150 mV – 12 V
Circuit Topology Class Class A/B + Class BD (Sub)
Efficiency (average) Front/Rear: 66% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Total Harmonic Distortion (THD+Noise) <1.0%
Signal Input Input Switch: Hi/Low level input
Input Switch: 2/4 channel input
Hi/Low Level: 3 RCA Pair
Sub: front/sub input switch
Signal Output –
Tone Controls Sub:
0dB to +18dB @ 45Hz
Crossover Controls Front: 50Hz – 250Hz High-Pass @ 12dB/Octave
Rear: 50Hz – 250Hz High-Pass @ 12dB/Octave
Sub: 50Hz – 250Hz Low-Pass
Sub: 28Hz infrasonic filter @ 12dB/Octave
Remote Controls Optional Punch Level Control (PLC2) Ready
Visual Indicators Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge 4 AWG
Power Input Connector Block
Speaker Wire Gauge 12 AWG
Speaker Output Connector Block
Cooling Convection
Operating Voltage 9 – 16 VDC
Recommended Fuse(not included) 150 A
Average Current Draw (13.8V Music) 75 A
Max. Current Draw (13.8V Sinewave) 150 A
Suggested Alternator 100 A
Dimensions (H x W x D) 2.38 x 7.76 x 15.03 (in)
6.05 x 19.71 x 38.18 (cm)
Shipping Weight 15.3 Lbs. (6.93 Kg.)
SKU: P1000X5 Categories: , , Tags: ,

Description

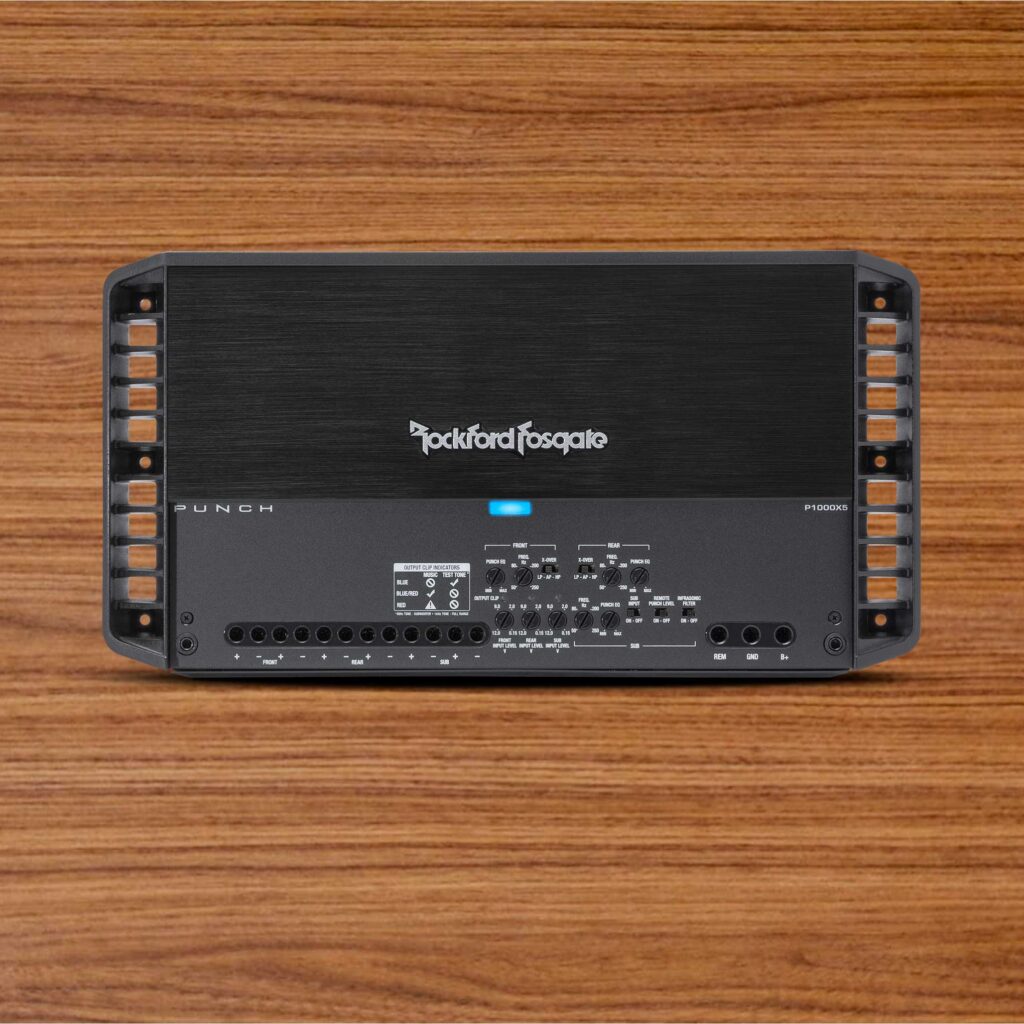

The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system. The P1000X5 is perfect for running a front/rear system and a dedicated subwoofer.

The P1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.

Reviews

There are no reviews yet.

Be the first to review “Rockfort Fosgate Punch 1,000 Watt Class-bd 5-Channel Amplifier P1000X5”

P1000X5 Manual
