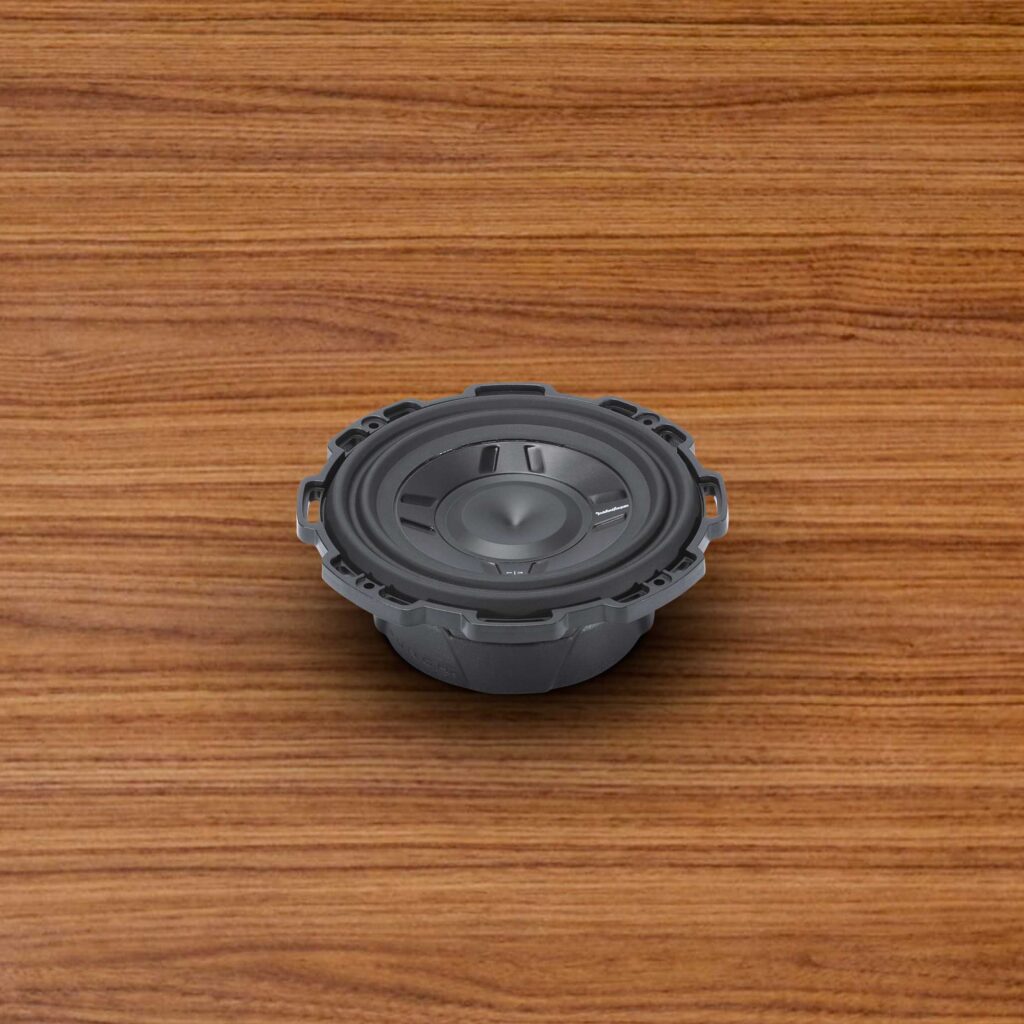

Rockfort Fosgate Punch 20 cm (8″) P3S Shallow 2-Ohm DVC Subwoofer P3SD2-8
219,00 €
Magnet Weight (kg) | 1.06 oz. (37.5 kg.) |
Vas (Liters) | 15.8 |
Qms | 5 |
Size | 20cm (8″) |
Speaker Connector | Dual 10 AWG Compression |
Mounting Depth | 2.66 in. (67.5 mm) |
Voice Coil Diameter | 2″ (51.6mm) |
SPL (dB @ 1w/1m) | 82 |
Woofer Displacement | 0.040 cu. ft. (1.13 Liters) |
Re (Ohms) | 3.2 |
Le (mH) | 0.9 |
Nominal Impedance | Dual 2-Ohm |
Power Handling (Watts RMS) | 150 Watts RMS 300 Watts Max |
Magnet Weight (oz) | 37.5 oz. (1.06 Kg) |
Qts | 0.72 |
Qes | 0.837 |
Xmax (mm) | 8.3 |
Cutout Diameter | 7.13 in. (181.0 mm) |
Fs (Hz) | 38 |
Sd (cm2) | 220 |
Subwoofer Type | Shallow |
Voice Coil Type | Dual Voice Coil |
Sealed Box Volume (Vb) | 0.25 cu. ft. (7.0 Liters) |
Vented Box Volume (Vb) | 0.75 cu. ft. (21.2 Liters) |
Shipping Weight | 8.8 Lbs. (3.99 Kg.) |
- Description
- Reviews (0)
- PDF MANUAL
Description
Rockford Fosgate P3S 8″ shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD2-8 features Dual 2-Ohm voice coils for wiring flexibility and 150 Watts RMS power handling.
The Rockford Fosgate P3S 8″ shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.
