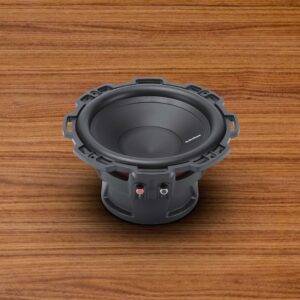

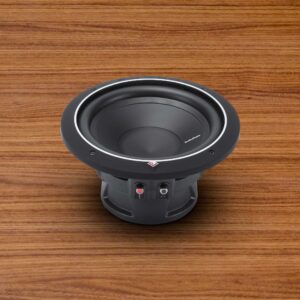

P1S2-10 Rockfort Fosgate Punch 25 cm (10”) P1 2-Ohm SVC Subwoofer

129,00

Technical Specifications:

Power Handling (Watts RMS) 250 Watts RMS
500 Watts Max
Voice Coil Type Single Voice Coil
Subwoofer Type Standard
Magnet Weight (oz) 45 oz. (1.28 kg.)
Size 25 cm (10”)
Qts 0.52
Xmax (mm) 9.0
Qms 2.70
Fs (Hz) 30
Re (Ohms) 1.60
Voice Coil Diameter 2.0″ (51.6 mm)
Nominal Impedance 2-Ohm
Speaker Connector Dual 10 AWG compression
Qes 0.75
Vas (Liters) 35.4
Mounting Depth 5.33 in. (135.4 mm)
Le (mH) 1.16
Sd (cm2) 370
SPL (dB @ 1w/1m) 85
Cutout Diameter 9.14 in. (232 mm)
SPL (dB @ 2.8v/1m) 88
Woofer Displacement 0.056 cu. ft. (1.6 Liters)
Sealed Box Volume (Vb) 0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)
Shipping Weight 11.1 Lbs. (5.03 kg)
Availability: Available on backorder SKU: P1S2-10 Categories: , , Tags: ,

Description

Rockford Fosgate P1 10” is the first in a family of famous “Punch” subwoofers. The P1S2-10 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

Rockford Fosgate P1 10″ are the first in a family of world famous subwoofers called “The Punch”. During their inception in the 1980’s, they quickly became “The Woofer of Choice” for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
