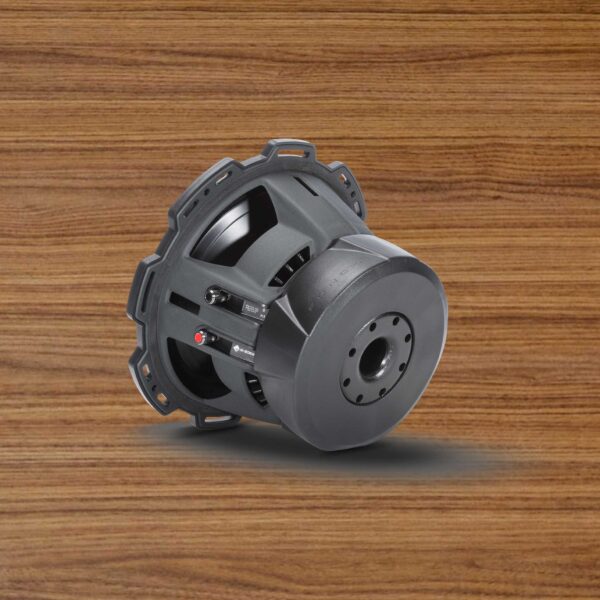

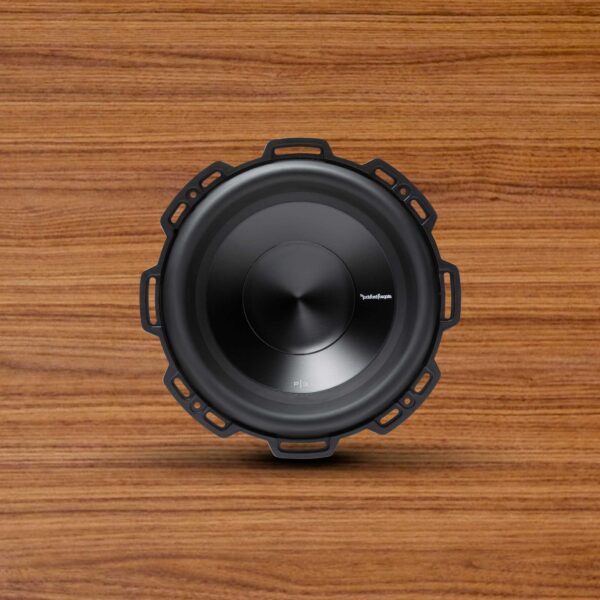

Rockfort Fosgate Punch 25 cm (10”) P3 2-Ohm DVC Subwoofer P3D2-10
289,00 €
Technical Specifications:
Power Handling (Watts RMS) | 500 Watts RMS 1000 Watts Max |
Sd (cm2) | 360 |
Speaker Connector | Dual 10 AWG compression |
Size | 25 cm (10”) |
Nominal Impedance | Dual 2-Ohm |
Mounting Depth | 6.18 in. (156.8 mm) |
Voice Coil Diameter | 2.5″ (65.5 mm) |
Fs (Hz) | 26.6 |
Woofer Displacement | 0.070 cu. ft. (2.0 Liters) |
Qes | 0.54 |
Qms | 6.00 |
Vas (Liters) | 27.0 |
SPL (dB @ 1w/1m) | 82 |
Qts | 0.49 |
Cutout Diameter | 9.13 in. (232 mm) |
Magnet Weight (oz) | 81 oz. (2.30 kg.) |
Le (mH) | 4.5 |
Re (Ohms) | 3.20 |
Xmax (mm) | 15.2 |
Subwoofer Type | Standard |
Voice Coil Type | Dual Voice Coil |
Sealed Box Volume (Vb) | 0.59 cu. ft. (16.7 Liters) |
Vented Box Volume (Vb) | 1.4 cu. ft. (39.6 Liters) |
Shipping Weight | 17.3 Lbs. (7.8 kg) |
- Description
- Reviews (0)
- PDF MANUAL
Description
The P3D2-10 is the best performing Rockford Fosgate Punch series subwoofer. The P3 10” features Dual 2-Ohm voice coils, 500 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.
The P3D2-10 is Rockford Fosgate’s best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
