Rockfort Fosgate Punch 500 Watt 2-Channel Amplifier P500X2
399,00 €
Technical Specifications:
Number of Channels | 2 |
Total Power(Sum of Rated Power) | 500 Watts |
Rated Power(RMS Continuous Power) | 150 Watts x 2 @ 4-Ohm 250 Watts x 2 @ 2-Ohm 500 Watts x 1 @ 4-Ohm Bridged |
Dynamic Power(PVC/PowerCube®) | 223 Watts x 2 @ 4-Ohms 0° Res 365 Watts x 2 @ 2-Ohms 0° Res |
Bridgeable | Yes |
Frequency Response | 20Hz to 20kHz +/- 1.0dB |
Input Sensitivity | 150 mV – 12 V |
Circuit Topology Class | Class A/B |
Efficiency (average) | 73% @ 4-Ohm |
Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
Signal Input | Hi/Low level: 1 RCA pair |
Signal Output | Low level: 1 RCA pair |
Tone Controls | Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Punch EQ2 Treble: 0dB to +12dB @ 12kHz Function depends upon LP/AP/HP switch position |
Crossover Controls | High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth All-Pass: Yes |
Remote Controls | Optional Punch Level Control (PLC2) Ready |
Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
Power Wire Gauge | 4 AWG |
Power Input Connector | Captive C-Clamp |
Speaker Wire Gauge | 8 AWG to 18 AWG |
Speaker Output Connector | Captive C-Clamp |
Cooling | Convection |
Operating Voltage | 9 – 16 VDC |
Recommended Fuse(not included) | 80 A |
Average Current Draw (13.8V Music) | 40 A |
Max. Current Draw (13.8V Sinewave) | 80 A |
Suggested Alternator | 75 A |
Dimensions (H x W x D) | 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm) |
Shipping Weight | 12.3 Lbs. (5.57 Kg.) |
- Description
- Reviews (0)
- PDF MANUAL
Description

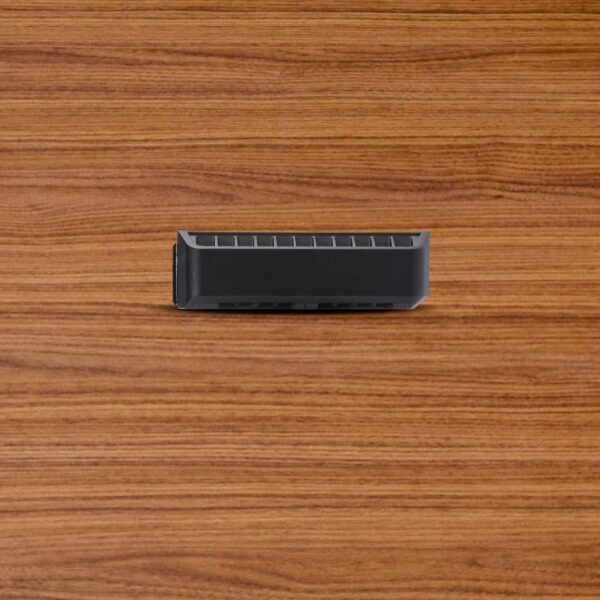

The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
The P500X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk – that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.
